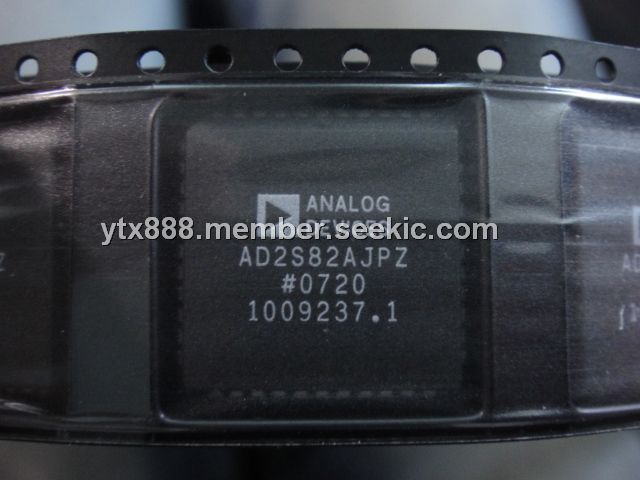

AD2S82AJPZ

tracking resolver-to-digital converter, PLCC-44, +14 V, Ratiometric Conversion

Rated 5 Rating 5 | reviews | Write a review

Price:: US $125.00~126.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $125.00~126.00

PartNumber:: AD2S82AJPZ

Brand:: Analog Devices - ADI | Pack: PLCC | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:AD2S82AJPZ
US $125.00 - 126.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

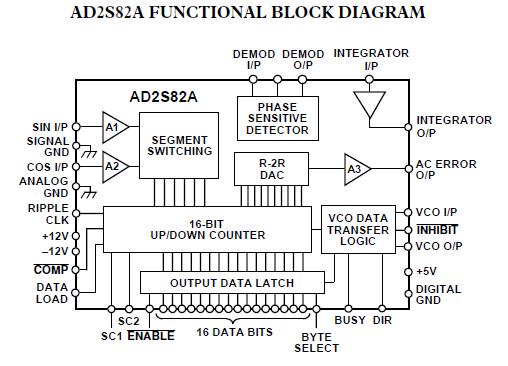

The AD2S82AJPZ is a monolithic 10-, 12-, 14- or 16-bit tracking resolver-to-digital converter contained in a 44-lead J leaded PLCC package. Two extra functions are provided in the new surface mount package–COMPLEMENT and VCO output. The AD2S82AJPZ is a monolithic 12-bit fixed resolution tracking resolver-to-digital converter packaged in a 28-lead DIP. The applications of the AD2S82AJPZ include DC Brushless and AC Motor Control, Process Control, Numerical Control of Machine Tools, Robotics, Axis Control.

Parametrics

AD2S82AJPZ absolute maximum ratings: (1)+VS: +14 V dc; (2)–VS: –14 V dc; (3)+VL: +VS; (4)Reference: +14 V to –VS; (5)SIN: +14 V to –VS; (6)COS: +14 V to –VS; (7)Any Logical Input: –0.4 V dc to +VL dc; (8)Demodulator Input: +14 V to –VS; (9)Integrator Input: +14 V to –VS; (10)VCO Input: +14 V to –VS; (11)Power Dissipation: 860 mW; (12)Operating Temperature: Commercial (JD): 0℃ to +70℃, Industrial (HP, JP, KP, LP): –40℃ to +85℃; (13)Storage Temperature (All Grades): –65℃ to +150℃; (14)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD2S82AJPZ features: (1)Monolithic (BiMOS ll) Tracking R/D Converter; (2)Ratiometric Conversion; (3)Low Power Consumption: 300 mW Typ; (4)Dynamic Performance Set by User; (5)Velocity Output; (6)ESD Class 2 Protection (2,000 V Min); (7)44-Lead PLCC Package; (8)10-, 12-, 14- and 16-Bit Resolution Set by User; (9)High Max Tracking Rate 1040 RPS (10 Bits); (10)VCO Output (Inter LSB Output); (11)Data Complement Facility; (12)Industrial Temperature Range.
