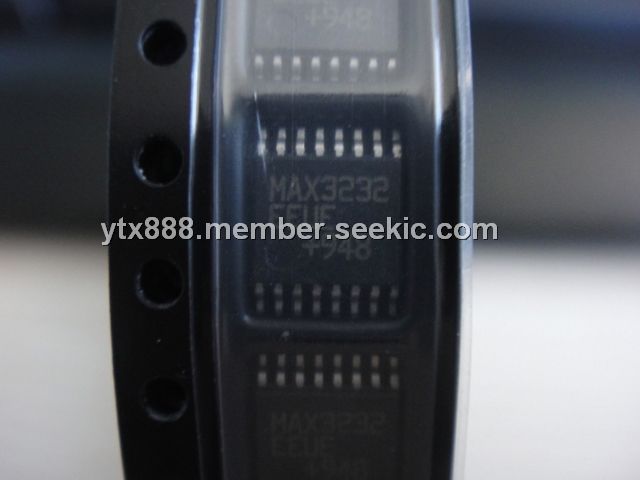

Product Summary
The MAX3232EEUE +3.0V-powered EIA/TIA-232 and V.28/V.24 communications interface device features low power consumption, high data-rate capabilities, and enhanced electrostatic-discharge (ESD) protection. The enhanced ESD structure protects all transmitter outputs and receiver inputs to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model. The applications of the MAX3232EEUE include Battery-Powered Equipment, Cell Phones, Smart Phones, Cell-Phone Data Cables, xDSL Modems, Notebook, Subnotebook, and Palmtop Computers.
Parametrics
MAX3232EEUE absolute maximum ratings: (1)VCC to GND: -0.3V to +6V; (2)V+ to GND: -0.3V to +7V; (3)V- to GND: +0.3V to -7V; (4)V+ + |V-|: +13V; (5)Input Voltages: T_IN, EN, SHDN, MBAUD to GND: -0.3V to +6V, R_IN to GND: ±25V; (6)Output Voltages: T_OUT to GND: ±13.2V, R_OUT, R_OUTB: -0.3V to (VCC + 0.3V); (7)Short-Circuit Duration, T_OUT to GND: Continuous; (8)Continuous Power Dissipation (TA = +70℃): 16-Pin SSOP (derate 7.14mW/℃ above +70℃): 571mW.
Features
MAX3232EEUE features: (1)For Space-Constrained Applications, MAX3228E/MAX3229E: 亇15kV ESD-Protected, +2.5V to +5.5V, RS-232 Transceivers in UCSP; (2)For Low-Voltage or Data Cable Applications, MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx, RS-232 Transceivers with ±15kV ESD-Protected I/O and Logic Pins.

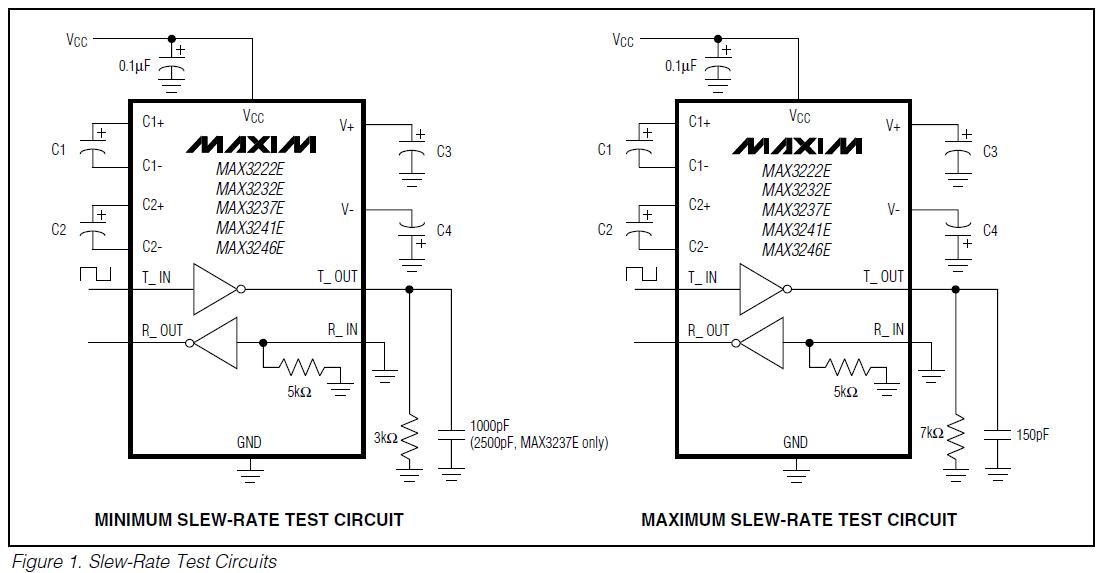

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3232EEUE+ |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX3232EEUE+T |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
 |
MAX3232EEUE-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX3232EEUE |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
