Product Summary
The TLP121 is a small outline coupler, suitable for surface mount assembly. It consists of a photo transistor,optically coupled to a gallium arsenide infrared emitting diode.
Parametrics
TLP121 absolute maximum ratings: (1)forward current: 50mA; (2)pulse forward curent: 1A; (3)reverse voltage: 5V; (4)junction temperature: 125℃; (5)storage temperature range: -55℃ to +125℃; (6)operating temperature range: -55℃ to +100℃; (7)lead soldering temperature: 260℃.
Features
TLP121 features: (1)collector-emitter voltage: 80V (min); (2)current transfer ratio: 50% (min.); (3)isolation voltage: 3750 Vrms(min.).

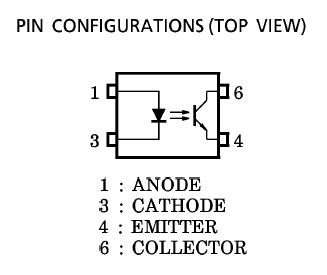

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP121 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
TLP1211 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
TLP1215 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
TLP1217 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
TLP121GB |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
 |
TLP1210SATG |
Tripp Lite |
Power Outlet Strips ECO SURGE 12 OUT GRN 10FT CORD TEL/COAX |
Data Sheet |
|
|
||||||||
