Product Summary
The EP1S20F780C7N FPGA is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process, with densities of up to 79,040 logic elements (LEs) and up to 7.5 Mbits of RAM. It offers up to 22 digital signal processing (DSP) blocks with up to 176 (9-bit × 9-bit) embedded multipliers, optimized for DSP applications that enable efficient implementation of high-performance filters and multipliers. The EP1S20F780C7N supports various I/O standards and also offer a complete clock management solution with its hierarchical clock structure with up to 420-MHz performance and up to 12 phase-locked loops (PLLs).
Parametrics
EP1S20F780C7N absolute maximum ratings: (1)Supply voltage With respect to ground: –0.5 to 2.4 V, –0.5 to 4.6 V; (2)DC input voltage: –0.5 to 4.6 V; (3)DC output current, per pin: –25 to 40 mA; (4)Storage temperature No bias: –65 to 150 ℃; (5)Junction temperature BGA packages under bias: 135 ℃.
Features
EP1S20F780C7N features: (1)10,570 to 79,040 LEs; (2)Up to 7,427,520 RAM bits (928,440 bytes) available without reducing logic resources; (3)TriMatrixTM memory consisting of three RAM block sizes to; (4)implement true dual-port memory and first-in first-out (FIFO) buffers; (5)High-speed DSP blocks provide dedicated implementation of multipliers (faster than 300 MHz), multiply-accumulate functions, and finite impulse response (FIR) filters; (6)Up to 16 global clocks with 22 clocking resources per device region.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

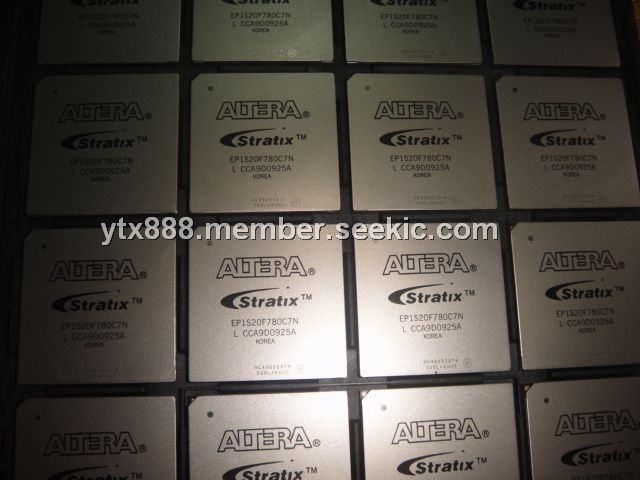

 EP1S20F780C7N |
|
IC STRATIX FPGA 20K LE 780-FBGA |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EP1S |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
EP1S10 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
EP1S10F484C5 |
|
IC STRATIX FPGA 10K LE 484-FBGA |
Data Sheet |
|
|
||||||
|
EP1S10F484C5N |
|
IC STRATIX FPGA 10K LE 484-FBGA |
Data Sheet |
|
|
||||||
|
EP1S10F484C6 |
|
IC STRATIX FPGA 10K LE 484-FBGA |
Data Sheet |
|
|
||||||
|
EP1S10F484C6N |
|
IC STRATIX FPGA 10K LE 484-FBGA |
Data Sheet |
|
|
||||||
