Product Summary
The X28HC256JI-12 is a second generation high performance CMOS 32K x 8 E2PROM. It is fabricated with Xicor’s proprietary, textured poly floating gate technology, providing a highly reliable 5 Volt only nonvolatile memory.
Parametrics
X28HC256JI-12 absolute maximum ratings: (1)Temperature under Bias: –65℃ to +135℃; (2)Storage Temperature: –65℃ to +150℃; (3)Voltage on any Pin with Respect to VSS: –1V to +7V; (4)D.C. Output Current: 10mA; (5)Lead Temperature (Soldering, 10 seconds): 300℃.
Features
X28HC256JI-12 features: (1)Access Time: 70ns; (2)Simple Byte and Page Write: single 5V Supply: no External High Voltages or VPP Control Circuits, self-Timed: no Erase Before Write, no Complex Programming Algorithms, no Overerase Problem; (3)Low Power CMOS: Active: 60mA, Standby: 500mA; (4)Software Data Protection: Protects Data Against System Level; (5)Inadvertent Writes; (6)High Speed Page Write Capability; (7)Highly Reliable Direct Write Cell: Endurance: 100,000 Write Cycles, Data Retention: 100 Years; (8)Early End of Write Detection: DATA Polling, Toggle Bit Polling.

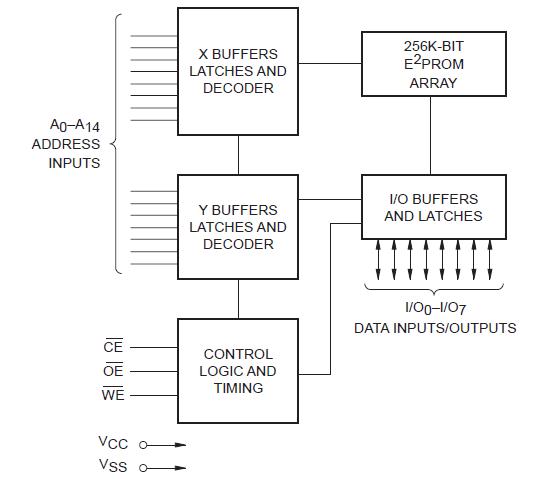

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 X28HC256JI-12 |
Intersil |
IC EEPROM 32K X 8 32PLCC |
Data Sheet |
Negotiable |
|
||||
|
X28HC256JI-12T1 |
Intersil |
IC EEPROM 32KX8 5V CMOS 32-PLCC |
Data Sheet |
Negotiable |
|
||||
